Car Phone Charger Dock

Posted on by
Reply

My phone has wireless charging built in, and it is a wonderful feature.  Very futuristic.  I wanted this ability in my car when doing road trips or errands.  I started with a flat lipped bed that would keep the phone in place.  There is a spot behind the gear select knob that was just big enough for it to sit.

I took apart a small puck wireless charger and pulled the internals out.  It was all one piece with 4 holes for me to mount to.  Very convenient.  Below are the first 3 PLA iterations of my design.

20180525_141934

The first one on the left was too wide, and din’t have enough space cut out for fingers.  The cover (below) didn’t sit well in the cavity either.  The next one was better, and had more rounding.  The last one had a tapered bottom to lighten the look, and a simple disk to cover up the electronics.

I put it in the car and test drove it for a few days.  It was an awkward fit.  the rubber pads underneath kept it from sliding around, but it was tight navigating it between the shifter and console.  I sat it upright in the change well and found that orientation a lot easier to use.

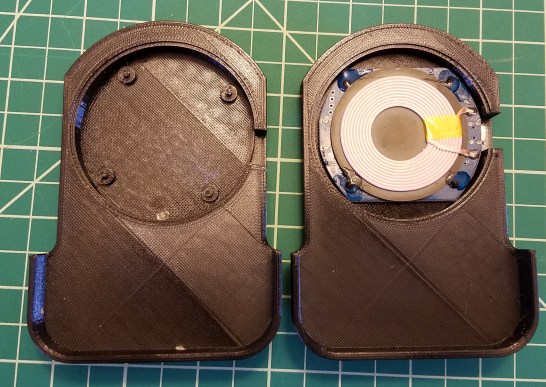

This sticks up a lot higher than was really needed, but The principle is sound.  I switched to PETG because the other car parts I printed in that material have held up well.  I thought I had a slam dunk with the left one, but the angle of the cable was too low, and the circuit card needed a little fit adjustment.  PLA and PETG shrink differently.  If you prototype something in one material, then switch to another, tight fights might need adjustment.


I have run around with this version for a week now and love it.  My phone falls right in and is picked up easily.  The cable is well controlled and doesn’t get in the way.  It took a few iterations to get here, but was worth it.

The only issue with using that space for my phone is that I typically put trash there.  It was easy to see and clean out at the end of the day.  Time for another print!  I can fit a little trash can in the side pocket of my door.  Measuring down inside the pocket calls for something like a pair of inside dividers.  I didn’t have any, but I do now!

With tool created I measured the pocket width in a few spots and came up with a profile.  It took some adjustments, but the second version clicked into place.  That area of the car has a ton of curves.  This didn’t match them perfectly, but it sits well and doesn’t stress the door mold too much.  I gave this design a week as well.

It worked out like a charm, but could stand to be wider.  I printed it 50% wider out of PETG to survive the heat, and called my car project done.

DSC_1271

Father’s Day Flippers

Posted on by
Reply

These are called pigtail flippers, bbq turners, or I have also heard Texas toothpicks.  Whatever you call them, they are cool tools for the grill.  Here is me demonstrating their use on a set of serious pork chops for my father in law.

20180616_120333I wanted to try one of these tools, and my localish woodcraft had these new kits on sale.  Why not make one for myself and the dads in my life?  I picked up some thick maple dowel to make these handles.  I was building the handles for my mom’s bookbinding press at the same time, so it all worked out.

The first step is to drill out a hole for the threaded insert, and carefully thread it in.  I had an issue.  Most kits use 1/4-20 or 5/16-18 threaded inserts.  This one had an M6 insert for the metal turner rod.  I don’t have an M6 mandrel, and I couldn’t find one online.  Time to make one!  I played around, but ultimately a nut and bolt with the head cut off did the trick.

DSC_1251

That let me thread the brass insert into the handle, but I would normally flip the part around and chuck the mandrel up so I could spin with no tail stock.  No such luck here, the bolt is too small for all of my chuck jaws (right picture).  I could try to chuck up the nut, but it has 6 sides and the jaws all have 4.  If I did a lot of these, I would have to figure out how to make my own mandrel.

Instead of holding it by the threaded insert I turned down a shoulder to accept a brass bushing, then chucked up that shouldered section.  It marred the surface, but that will get covered anyways.

With 4 different variations turned I remembered I was supposed to drill a hole in them for their hanging cable.  This would have been a lot easier when they were simple cylinders still.  Order of operations on the lathe is super critical.  I put the whole lot of them on little sticks and went to town with the spray polyurethane.

I pressed on the brass bushing with epoxy and threaded on the turner.  The wire cable as a hanging strap adds a nice touch.  I hadn’t broken out the lathe in quite a while, so this was quite satisfying to get these done with minimal screw ups.

DSC_1284

DSC_1285

One other minor experiment that happened when I had my lathe out was to try and smooth out my 3D printed can koozie.  It turns out that you can really shine that stuff up if you go through the grits.  There are minor voids that show through upon close inspection.  Still, that is a nice shiny looking part.  You could polish up most of a chess set this way!

Bookbinding Press

Posted on by
2

During a visit to my crafty mother, I came across a good build to support her habits.  She showed me a series of bookbinding finishing presses.  I am not super familiar with how they work, but they looked a lot like a moxon vise.  I am planning out a moxon vise build of my own, so this would be a good learning experience and make a great gift.

DSC_1280

DSC_1281

Traditional books have a lot of layers of material that need gluing together.  This helps keep it all clamped for various operations.  The side wings let you clamp it to a table, and with it hanging over the edge, any length book can be held.  The jaws will open to accept a 3″ thick book, and there are 13 inches between the screws, allowing for a very tall book.  5/16″-18 hand screws should provide plenty of clamping force.  The hand screws come out, so it can be disassembled and packed into a smaller space.

I started with the backbone and dovetails.  If something was going to get screwed up, it was the dovetails.  I need to cut a lot for an upcoming project and I am beyond rusty.  Mark, saw edges, fret away waste and pare the rest.

My dovetail transfer jig has already come in handy.  The pins look pretty rotten, but they should be very structurally sound.  Sorry mom!

With that taken care of I glued up two pieces for the front, and added another to the backbone.  One piece was taller than the other which eventually got planed to an angle.  That gives your fingers easier access to the book spine.

DSC_1236

DSC_1237

DSC_1238

I assembled the dovetails and put on side wings that let you clamp this jig to any table or workbench.

DSC_1240

DSC_1242

When all the glue was well cured I put on a few coats of polyurethane in the hopes that bookbinding glue wouldn’t stick to it.  Felt pads on the bottom should keep it from scuffing any tables.  I pounded in some threaded inserts meant for wood.  They should hold just fine, but to be sure I sank a few screws beside them.

To run the threaded rods in and out you are going to need a stout handle.  I chopped some maple dowels down to size, drilled out for a 5/16 threaded insert, reduced the entry shoulder for a brass sleeve, then flipped it around, threaded it onto a 5/16 mandril, and smoothed out the back side.

The bare wood got multiple coats of spray polyurethane, then when cured, I epoxied the brass sleeve on the handles, and the threaded rod in place.  DSC_1276.JPG

Spring 3D Prints 2018

Posted on by
Reply

I haven’t done a “Prints Of The Month” post in a while, but that doesn’t mean I haven’t had a pile of stuff popping off the printer.  Here is a smattering of prints I completed in the last 2 months or so.

I needed extra retainer cases for some orthodontics equipment I have (bummer).  I could buy them, but where is the fun in that?  Fusion 360 has a half decent thread database, so I dug into it and made a screw together case.  I started with the default settings and couldn’t get the top to screw down all the way.  It turns out I was using a Class 3 thread.  Class 1 is the loosest, while Class 3 is high precision.

I eventually oiled the threads and worked the Class 3 one back and forth a number of times and it closes now.  The Class 1 set I printed worked itself into fully closing a lot faster.  If you are worried about your prints coming together, pay attention to the thread class.

Continuing with the gaudy yellow color, I added a magnifying light to my shop.  They sell screw on bases you can plug the light post into, but they charge 20 bucks each.  I can print as many as I want for less than a dollar a piece.

A co-worker builds guitars with a CNC mill, but occasionally needs chisels to help clean up segments.  I took his flunky grade D chisels and put a nice shine on them.  3D prints and a magnet means nobody gets stabbed by accident when transporting them back to the owner.

20180512_114215

I printed a small cable guide for my car a year ago.  It lasted a while, but fell off recently.  The tape failed to hold the printed part.  Time for an upgrade.  I increased the width by 50% and made it three times taller.  Before attaching the tape I scuffed up the back to help it grip well.  The PETG didn’t melt or deform in the summer heat, so I am sticking with that material.

Not my own invention, but rather a Thingiverse submission by user iamjonlawrence.  They are a set of printable radius gauges.  They have inside radius, outside radius, and a set of circles.  The hole of the circle has the radius marked on the gauge, the outside has twice the radius.  The metric versions have that fact labeled better.  They pack a lot of function in a few small prints.  They are available every 1/16″ up to 1″.  I might have to make a set that goes over 1″.

An example of how to use them is on the right.  A pair of calipers wouldn’t really tell you the proper radius, but this gauge has it pegged.

Last but not least, we have a beloved octopus stained glass in our kitchen window named Eddy.  He guards over the cooking and cleaning activities and always lends a limb.  He is too heavy to hang on a suction cup for more than a few weeks, so we always just sit him on the window edge.  He has fallen before, and that will not do.  I printed this basic profile to clip into the window frame and provide a little spot for Eddy to stay firmly in place.
