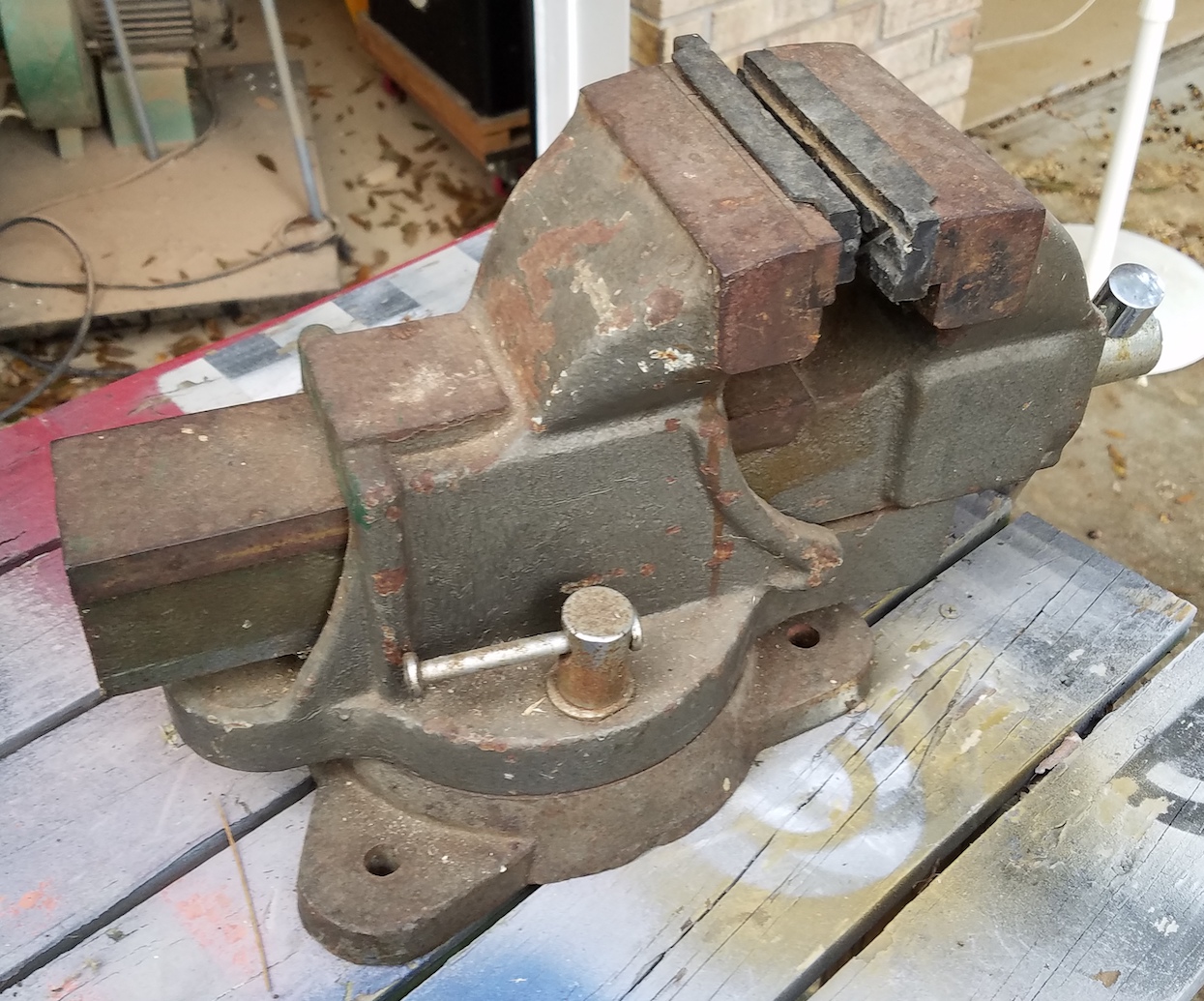

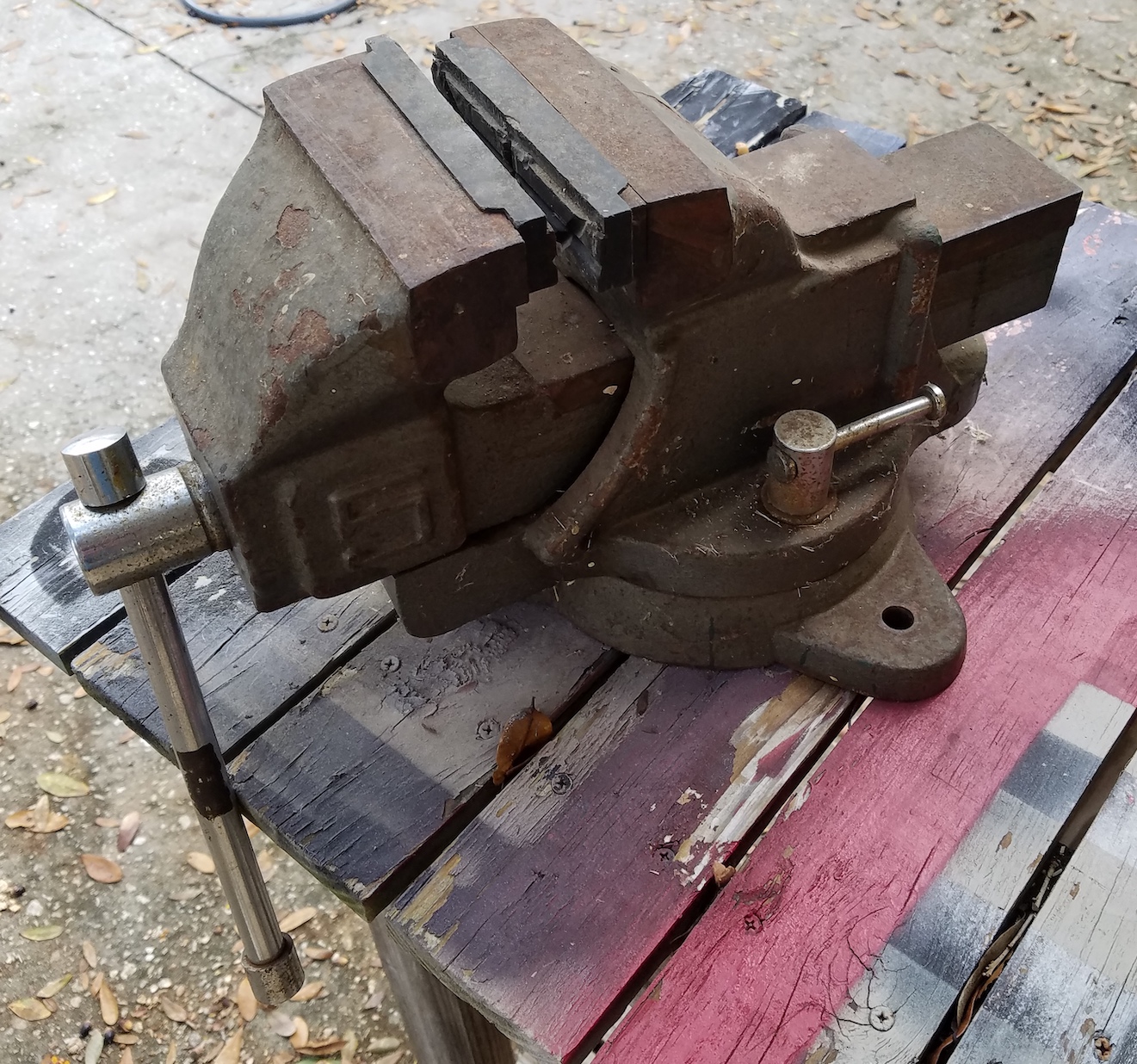

I recently inherited my great grandfather’s vise. It isn’t some magnificent old pre-WW2 piece of hardware that shows they really knew how to build them. It was purchased in the 70s and has an old green paint that looks like a faded version of what harbor freight uses today.
Still, no reason to get snoody about it. It is a really beefy looking vise compared to my little red one, it appears quite serviceable, is kind of an heirloom, and why toss something when you can fix it! It isn’t in horrible shape, but I wanted to do something before the rust moved in any further.

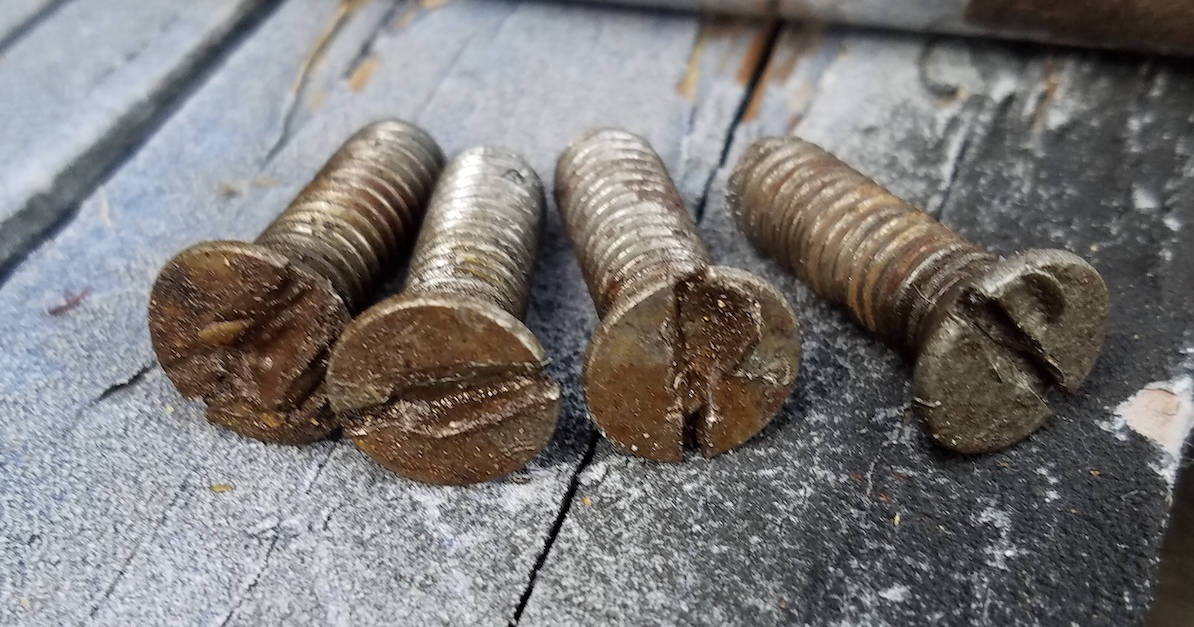

Everything came apart easily with the exception of the jaw pads. Their screws were in very poor shape and took some coaxing to get out. Looks like someone tried and failed earlier. I will replace these with something that accepts a hex key.

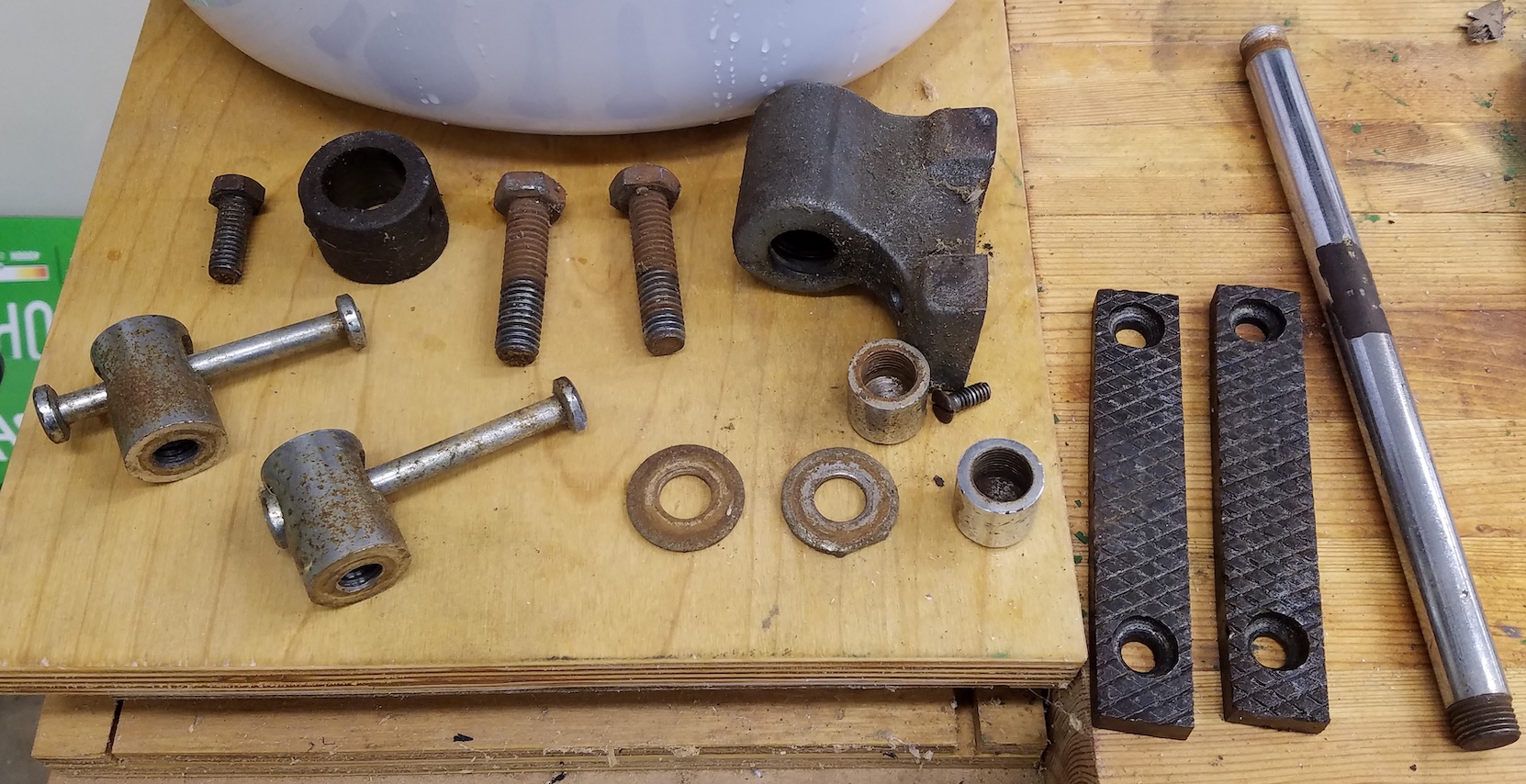

All the other minor screws and smaller hardware looked to be in good enough shape to keep. I put it all through a hot ultrasonic bath with a rust remover/inhibitor.
With the small parts taken care of I took an angle grinder powered wire brush to the main body parts of the vise. A flap wheel was used on the non-painted parts. They shined up a bit, but with all those deep gouges it will never look like new. Not sure if that means it is a soft casting or saw very heavy use. Everything remaining got a heavy coat of rust preventing primer.

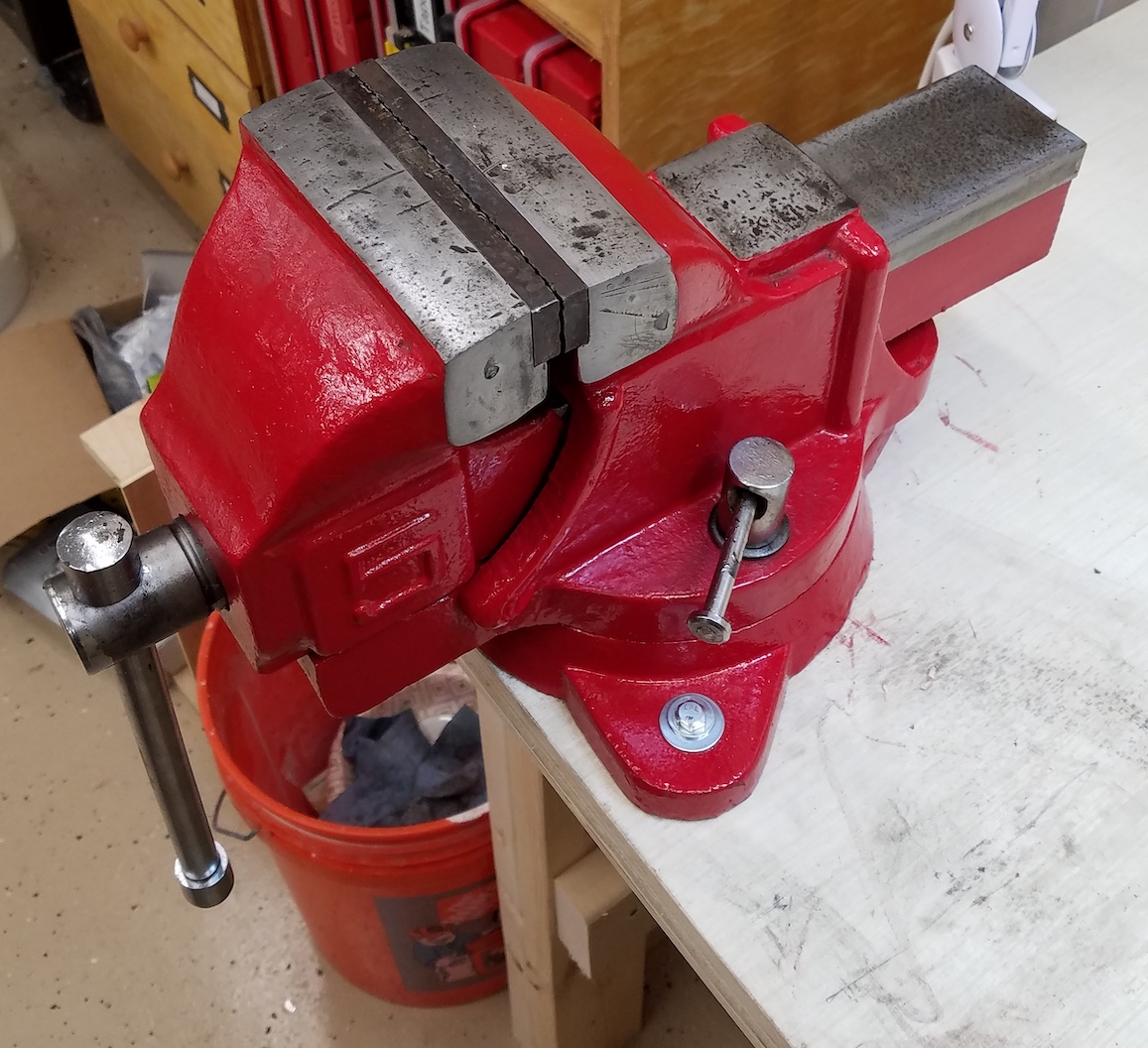

I wanted to gussy up the dreary green, so I broke out the vibrant red paint. It kind of looks like my smaller vise now. Big red and little red. Everything that moves got oil and I bolted it down to the new heavy duty workbench. Everything else below the bench is mobile, but this is going to see some heavy use, so permanent fixing is justified. Its first job is coming just around the corner.
